Feature
·12V / 24V auto work.
·Intuitive battery status indication.
·Intelligent PWM charge mode.
·Use industrial grade chip, can work properly under different environment.
·Use exposed wiring terminal, which makes the wiring more convenient.
·Use single-chip microcomputer control, intelligent, strong adaptability and reliable.
Protection
1. Over-load protection | 2. Short circuit protection | 3. Under-voltage protection |
4. Over-charging protection | 5. Over-discharging protection | 6. Reverse polarity protection |
Specification

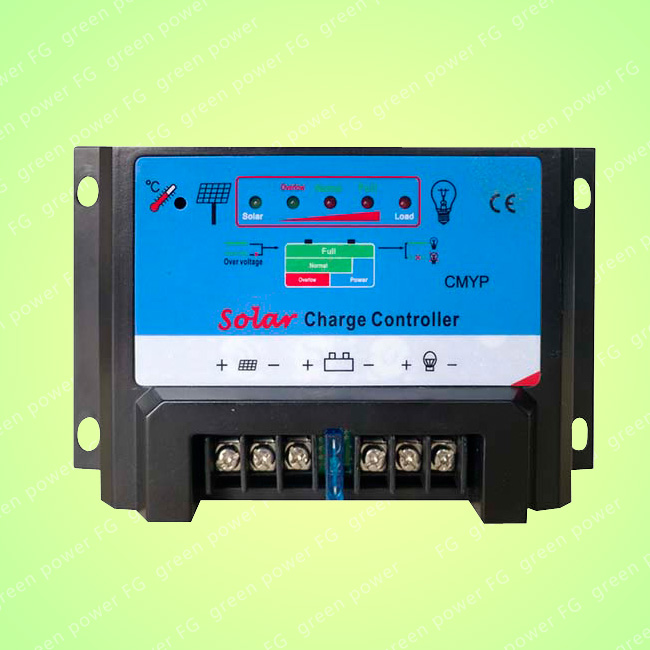

CMYP-2410 | CMYP-2420 | |
Rated charge current | 10A | 20A |
Rated discharge current | 10A | 20A |
1.5 times by rated current | ||
Short circuit recovery time | 3s | |
Empty load consumption | 0.05W | |
Charge circuit voltage drop | ≤0.20V | |
Discharge circuit voltage drop | ≤0.15V | |
Over voltage protection | 16V; ×2/24V | |
Float charge voltage | 14.7V; ×2/24V | |
Discharge recovery voltage | 12.2V; ×2/24V | |
Over discharge voltage | 10.5V; ×2/24V | |
Voltage accuracy | ±3% | |
Control mode | PWM | |
Working temperature | Industrial Grade: -35℃-+55℃ | |
Dimension of controller | 165×100×43.5(mm)（L×W×H） | |
Packing dimension | 170×107×51(mm)（L×W×H） | |
Weight | 250g | 275g |
